十、SMB(L)型泵法蘭尺寸
Flange Dimensions Of Type SMB(L)Pumps
|
|

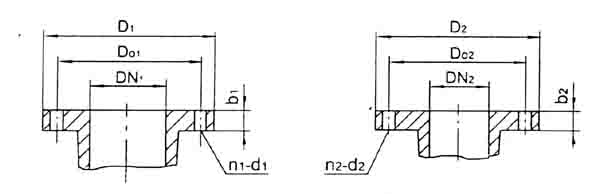

進口法蘭Inlet Flange
|
出口法蘭Discharge Flange
|
|
泵型號
Type
|
HT250
|
QT400-18/
ZG230
|
HT250
|
QT400-18/
ZG230
|
|
DN1
|
Do1
|
D1
|
B1
|
n1-d1
|
Do1
|
n1-d1
|
DN2
|
Do2
|
D2
|
b2
|
n2-d2
|
Do2
|
n2-d2
|
|
SMB350-620
|
400
|
565
|
640
|
44
|
16-ф25
|
585
|
16-ф30
|
350
|
460
|
533
|
36
|
16-ф23
|
470
|
16-ф26
|
|
SMB400-540
|
500
|
650
|
715
|
42
|
20-ф33
|
650
|
20-ф33
|
400
|
525
|
580
|
38
|
16-ф30
|
525
|
16-ф30
|
|
SMB400-620
|
500
|
650
|
715
|
42
|
20-ф33
|
650
|
20-ф33
|
400
|
525
|
580
|
38
|
16-ф30
|
525
|
16-ф30
|
|
SMB500-530
|
600
|
725
|
840
|
48
|
20-ф30
|
770
|
20-ф41
|
500
|
620
|
705
|
42
|
20-ф25
|
650
|
20-ф34
|
|
SMB500-640
|
600
|
725
|
840
|
48
|
20-ф30
|
700
|
20-ф41
|
500
|
620
|
705
|
42
|
20-ф25
|
650
|
20-ф34
|
|
SMB500-710
|
600
|
770
|
840
|
48
|
20-ф41
|
770
|
20-ф41
|
500
|
650
|
705
|
42
|
20-ф41
|
650
|
20-ф41
|
|
SMB500-790
|
600
|
770
|
840
|
48
|
20-ф41
|
770
|
20-ф41
|
500
|
660
|
730
|
52
|
20-ф41
|
660
|
20-ф41
|
|
SMB500-900
|
600
|
770
|
840
|
48
|
20-ф41
|
770
|
20-ф41
|
500
|
660
|
730
|
52
|
20-ф41
|
660
|
20-ф41
|
|
SMB600-560
|
700
|
840
|
91O
|
54
|
20-ф30
|
840
|
20-ф41
|
600
|
725
|
840
|
48
|
20-ф30
|
770
|
20-ф41
|
|
SMB600-620
|
700
|
840
|
910
|
54
|
20-ф30
|
840
|
20-ф41
|
600
|
725
|
840
|
48
|
20-ф30
|
770
|
20-ф41
|
|
SMB600-71O
|
700
|
840
|
955
|
56
|
24-ф30
|
875
|
24-ф48
|
600
|
770
|
840
|
48
|
20-ф41
|
770
|
20-ф41
|
|
SMB600-870
|
700
|
840
|
955
|
56
|
24-ф30
|
875
|
24-ф48
|
600
|
770
|
840
|
48
|
20-ф41
|
770
|
20-ф41
|
|
SMB700-570
|
800
|
950
|
1020
|
56
|
24-ф33
|
950
|
24-ф41
|
700
|
840
|
910
|
54
|
24-ф30
|
840
|
24-ф41
|
|
SMB700-710
|
800
|
950
|
1020
|
56
|
24-ф33
|
950
|
24-ф41
|
700
|
840
|
91O
|
54
|
24-ф30
|
840
|
24-ф41
|
|
SMB700-830
|
800
|
950
|
1020
|
56
|
24-ф41
|
950
|
24-ф41
|
700
|
8
|
910
|
54
|
24-ф41
|
840
|
24-ф41
|
|
SMB800-770
|
900
|
1050
|
1125
|
58
|
28-ф33
|
1050
|
28-ф39
|
800
|
900
|
1025
|
56
|
24-ф33
|
950
|
24-ф39
|
|
SMB800-880
|
900
|
1050
|
1125
|
58
|
28-ф33
|
1050
|
28-ф39
|
800
|
900
|
1025
|
56
|
24-ф33
|
950
|
24-ф39
|
|
SMB800-980
|
900
|
1050
|
1125
|
58
|
28-ф33.
|
1050
|
28-ф39
|
800
|
900
|
1025
|
56
|
24-ф33
|
950
|
24-ф39
|
|
SMB900-1150
|
1000
|
1170
|
1255
|
64
|
28-ф42
|
1170
|
28-ф42
|
900
|
1050
|
1125
|
60
|
28-ф33
|
1050
|
28-ф33
|
