3

、泵的結構說明Instruction of pump’s Structure.

  泵為立式安裝

,由電機、軸、泵蓋
、泵體
、導葉體
、葉輪等組成,泵軸套在電機軸伸上直接驅動葉輪工作
(見結構圖一)

  泵裝有壓力真空表和壓力表。用戶要求時

,也可裝旋液分離器

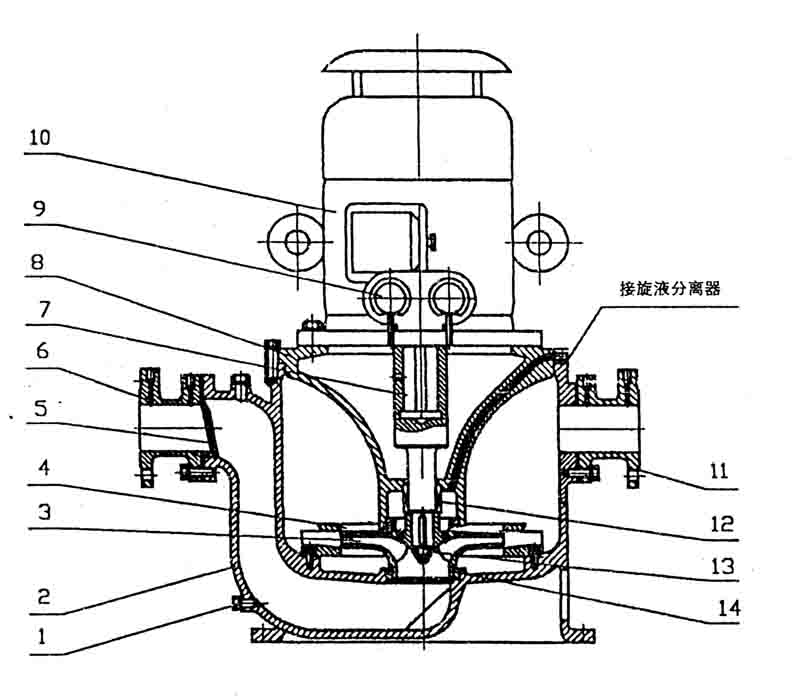

  結構圖一:

The CLZ serine Marine Vertical Centrifugal Pumps ale recommended to be vertically installedThe pump consists of electric motor,shaftcovers

body, impeller and wheel etcThe shaft of pump connects with that of electric motor and drives airectly the impeller to rumRefer to the drawing below

A vacuum gauge and pressure gauge ale fitted in the pumpA wet cyclone Can be also connected to the pump as the customer requests

1

、放泄螺塞2、泵體  3
、葉輪  4
、導葉體  5
、止回閥片6
、吸入閥體7、軸

8

、泵蓋    9
、儀表  10、電機  11
、出口接管  12
、機械密封  13、葉輪螺母

14

、密封環

1Plugs 2Pump body 3Impeller 4Guide Shell 5shim of non-return valve  6Inlet

body  7Shaft  8Cover of pump  9Gauge  10Electric motor  11Outlet piping

12Mechanical sealing 13Nut of Impeller 14Ring of sealing
