TSWA型泵性能參數表
|
|
|
流量 |
揚程 |
轉速 |
功率（KW） |
效率 |
允許吸上 |
汽蝕 |
重量 |
|
型號
|
級數
|
m³/h |
L/S |
(m) |
(r/min) |
軸功率 |
電機功率 |
(%) |
真空高度
(m) |
余量
(m) |
(kg) |
|
|
2
|
72
90
108 |
20
25
30 |
46
43.2
40 |
1450
|
12.89
14.32
15.59 |
22
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
475
|
|
3
|
72
90
108 |
20
25
30 |
69
64.8
60 |
1450
|
19.34
21.48
23.39 |
30
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
555
|
|
4
|
72
90
108 |
20
25
30 |
92
86.4
80 |
1450
|
25.79
28.63
31.18 |
45
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
640
|
|
5
|
72
90
108 |
20
25
30 |
115
108
100 |
1450
|
32.23
35.79
38.98 |
55
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
726
|
|
6
|
72
90
108 |
20
25
30 |
138
129.6
120 |
1450
|
38.67
42.95
46.78 |
75
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
840
|
|
125TSWA
|
7
|
72
90
108 |
20
25
30 |
161
151.2
140 |
1450
|
45.12
50.11
54.57 |
75
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
923
|
|
8
|
72
90
108 |
20
25
30 |
184
172.8
160 |
1450
|
51.57
57.27
62.37 |
90
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
1008
|
|
9
|
72
90
108 |
20
25
30 |
207
194.4
180 |
1450
|
58.02
64.43
70.16 |
90
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
1093
|
|
10
|
72
90
108 |
20
25
30 |
230
216
200 |
1450
|
64.46
71.59
77.96 |
90
|
70
74
75.5 |
7.2
6.8
6.2 |
2.9
3.4
4.1 |
1178
|
|
|
2
|
119
155
191 |
33
43
53 |
65
60
54.9 |
1450
|
29.03
32.91
36.19 |
45
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
522
|
|
3
|
119
155
191 |
33
43
53 |
97.5
90
82.4 |
1450
|
43.55
49.37
54.29 |
75
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
604
|
|
4
|
119
155
191 |
33
43
53 |
130
120
109.8 |
1450
|
58.06
65.82
72.39 |
90
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
686
|
|
5
|
119
155
191 |
33
43
53 |
162.5
150
137.2 |
1450
|
72.58
82.28
90.49 |
110
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
768
|
|
150TSWA |
6
|
119
155
191 |
33
43
53 |
195
180
164.7 |
1450
|
87.1
98.74
108.58 |
132
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
850
|
|
7
|
119
155
191 |
33
43
53 |
227.5
21O
192.1 |
1450
|
101.61
115.19
126.68 |
132
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
930
|
|
8
|
119
155
191 |
33
43
53 |
260
240
219.6 |
1450
|
116.12
131.65
144.78 |
160
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
1013
|
|
9
|
119
155
191 |
33
43
53 |
292.5
270
247.O |
1450
|
130.64
148.10
162.87 |
200
|
72.6
77
78.8 |
8
7.7
6.6 |
2.1
2.5
3.5 |
1095
|

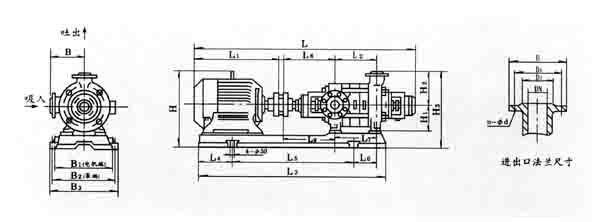

外形及安裝圖
