型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
400WQ1760-7.5-55 |
ф400 |
1760 |
7.5 |
580 |
55 |
82.3 |
2000 |
|
400WQ1300-10-55 |
ф400 |
1300 |
10 |
580 |
55 |
82 |
2000 |
|
400WQ2600-6-75 |
ф400 |
2600 |
6 |
740 |
75 |
78 |
1750 |
|
400WQ1500-10-75 |
ф400 |
1500 |
10 |
980 |
75 |
82.1 |
1750 |
|
400WQ2200-9-110 |
ф400 |
2200 |
9 |
980 |
110 |
80 |
2100 |
|
400WQ2000-15-132 |
ф400 |
2000 |
15 |
740 |
132 |
85.5 |
2520 |
|
400WQ1600-20-132 |
ф400 |
1600 |
20 |
740 |
132 |
82 |
2520 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表) Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

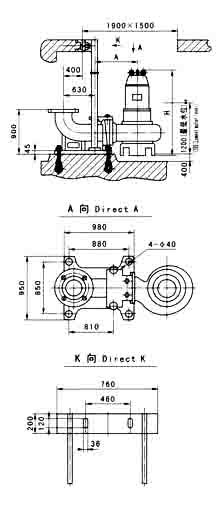

WQ型外形安裝尺寸圖OUT-FORM AND INSTALLATION DIMENSIONS OF
MODEL WQ
自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ submersible sewage pump for the installation dimensions of model JYWQ auto-stirring sewage pump． |
|
