型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚(yáng)程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
350WQ1200-8-45 |
φ350 |
1200 |
8 |
980 |
45 |
84 |
1350 |
|
350WQ1100-10-55 |
φ350 |
1100 |
10 |
980 |
45 |
84 |
1380 |
|
350WQ1300-12-75 |
φ350 |
1300 |
12 |
980 |
75 |
83 |
1450 |
|
350WQ1500-15-90 |
φ350 |
1500 |
15 |
980 |
90 |
82 |
2000 |
|
350WQ1200-18-90 |
φ350 |
1200 |
18 |
980 |
90 |
83 |
2000 |
|
350WQ1100-28-132 |
φ350 |
1100 |
28 |
980 |
132 |
83 |
2520 |
|
350WQ1100-36-160 |
φ350 |
1000 |
36 |
980 |
160 |
78.5 |
2880 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表) Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical
to those of model WQ submersible sewage pump (see the table above), see the next
page for the out-form dimensions.
|

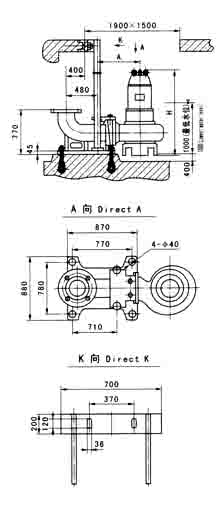

自動耦合式安裝
Auto-coupling
installation
|

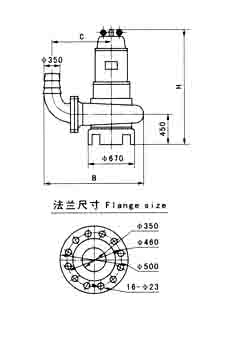

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進(jìn)行。
Note：refer to model WQ submersible sewage pump for the installation dimensions of model JYWQ auto-stirring sewage pump． |
|
型號Model |
H |
A |
B |
C |
|
350WQ1200-8-45 |
1950 |
680 |
1250 |
870 |
|
350WQ1100-10-45 |
2100 |
680 |
1250 |
870 |
|
350WQ1300-12-75 |
2100 |
680 |
1250 |
870 |
|
350WQ1500-15-90 |
2100 |
680 |
1250 |
870 |
|
350WQ1200-18-90 |
2160 |
680 |
1250 |
870 |
|
350WQ1100-28-132 |
2500 |
800 |
1600 |
1000 |
|
350WQ1100-36-160 |
2600 |
800 |
1600 |
1000 |
