型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
300WQ800-20-75 |
φ300 |
800 |
20 |
980 |
75 |
78 |
1600 |
|
300WQ950-20-90 |
φ300 |
950 |
20 |
980 |
90 |
80 |
1700 |
|
300WQ1000-25-110 |
φ300 |
1000 |
25 |
1450 |
110 |
82 |
2000 |
|
300WQ800-32-110 |
φ300 |
800 |
32 |
1450 |
110 |
76 |
2000 |
|
300WQ800-36-132 |
φ300 |
800 |
36 |
1450 |
132 |
76 |
2000 |
說明 JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表) Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|
自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|

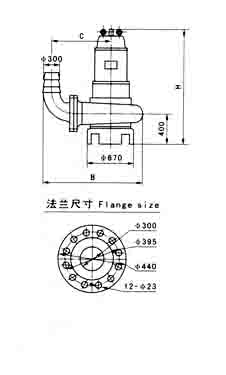

型號Model |
H |
A |
B |
C |
|
300WQ800-20-75 |
2250 |
700 |
1630 |
1200 |
|
300WQ950-20-90 |
2250 |
700 |
1630 |
1200 |
|
300WQ1000-25-110 |
2200 |
650 |
1200 |
800 |
|
300WQ800-32-110 |
2250 |
650 |
1200 |
800 |
|
300WQ800-36-132 |
2250 |
650 |
1200 |
800 |
