型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
300WQ900-8-37 |
φ300 |
900 |
8 |
980 |
37 |
81 |
1380 |
|
300WQ800-12-45 |
φ300 |
800 |
12 |
980 |
45 |
76 |
1500 |
|
300WQ500-15-45 |
φ300 |
500 |
15 |
980 |
45 |
70 |
1500 |
|
300WQ800-15-55 |
φ300 |
800 |
15 |
980 |
55 |
73 |
1550 |
|
300WQ600-20-55 |
φ300 |
600 |
20 |
980 |
55 |
75 |
1550 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|

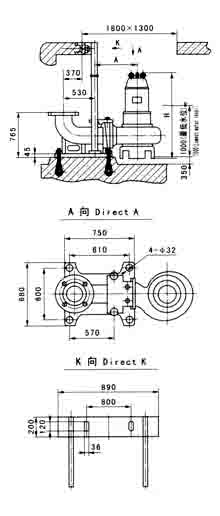

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行 Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
300WQ900-8-37 |
1850 |
620 |
1687 |
1080 |
|
300WQ800-12-45 |
1850 |
620 |
1687 |
1080 |
|
300WQ500-15-45 |
1900 |
700 |
1700 |
1100 |
|
300WQ800-15-55 |
1900 |
700 |
1700 |
1100 |
|
300WQ600-20-55 |
1900 |
700 |
1700 |
1100 |
