型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
100WQ110-10-5.5 |
φ100 |
110 |
10 |
1450 |
5.5 |
66 |
155 |
|
100WQ65-15-5.5 |
φ100 |
65 |
15 |
1450 |
5.5 |
59 |
150 |
|
100WQ100-15-7.5 |
φ100 |
100 |
15 |
1450 |
7.5 |
67 |
170 |
|
100WQ85-20-7.5 |
φ100 |
85 |
20 |
1450 |
7.5 |
68 |
170 |
|
100WQ50-22-7.5 |
φ100 |
50 |
22 |
1450 |
7.5 |
63 |
170 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表) Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical
to those of model WQ submersible sewage pump (see the table above), see the next
page for the out-form dimensions.
|

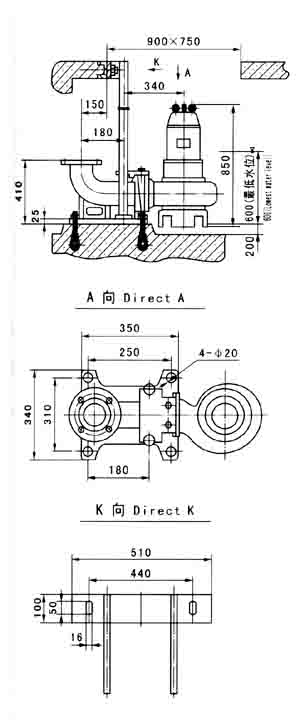

自動耦合式安裝
Auto-coupling
installation
|

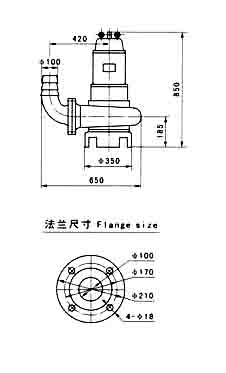

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行 Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
1OOWQ110-10-5.5 |
1100 |
370 |
830 |
550 |
|
100WQ65-15-5.5 |
1170 |
285 |
870 |
560 |
|
100WQ100-15-7.5 |
1200 |
400 |
880 |
570 |
|
1OOWQ50-22-7.5 |
1100 |
400 |
860 |
570 |
