型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚(yáng)程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
65WQ40-30-7.5 |
φ65 |
40 |
30 |
2900 |
7.5 |
58 |
110 |
|
65WQ30-40-7.5 |
φ65 |
30 |
40 |
2900 |
7.5 |
56 |
110 |
|
65WQ35-50-11 |
φ65 |
35 |
50 |
2900 |
11 |
60 |
200 |
|
65WQ35-60-15 |
φ65 |
35 |
60 |
2900 |
15 |
63 |
230 |
說明．JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表) Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

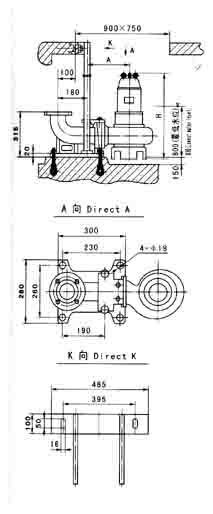

自動耦合式安裝
Auto-coupling
installation
|

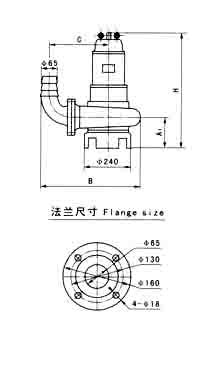

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進(jìn)行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
A1 |
B |
C |
|
65WQ35-10-3 |
760 |
270 |
170 |
580 |
400 |
|
65WQ35-7-2.2 |
760 |
230 |
160 |
570 |
290 |
|
65WQ35-50-11 |
920 |
250 |
165 |
480 |
300 |
|
65WQ35-60-15 |
920 |
250 |
165 |
480 |
300 |
