主要性能參數MAIN PERFORMANCE PARAMETERS
|
型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
50WQ18-30-3.0 |
φ50 |
18 |
30 |
2900 |
3.O |
58 |
70 |
|
50WQ24-20-4.0 |
φ50 |
24 |
20 |
2900 |
4.0 |
60 |
85 |
|
50WQ40-15-4.0 |
φ50 |
40 |
15 |
2900 |
4.0 |
60 |
85 |
|
50WQ25-32-5.5 |
φ50 |
25 |
32 |
2900 |
5.5 |
53 |
100 |
|
50WQ30-30-7.5 |
φ50 |
30 |
30 |
2900 |
7.5 |
56 |
110 |
|
50WQ20-40-7.5 |
φ50 |
20 |
40 |
2900 |
7.5 |
55 |
110 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表) Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|
WQ型外形安裝尺寸圖OUT-FORM AND INSTALLATION DIMENSIONS OF
MODEL WQ

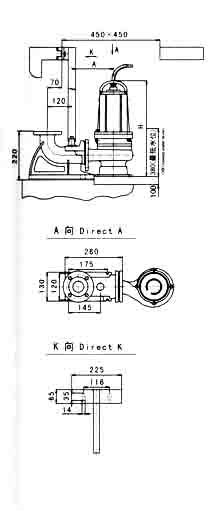

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|

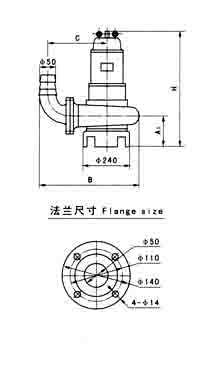

注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
A1 |
B |
C |
|
50WQ18-30-3.0 |
730 |
240 |
75 |
440 |
31O |
|
50WQ24-20-4.0 |
730 |
240 |
75 |
450 |
310 |
|
50WQ40-15-4.0 |
730 |
240 |
75 |
450 |
310 |
|
50WQ25-32-5.5 |
650 |
270 |
70 |
460 |
320 |
|
50WQ30-30-7.5 |
650 |
270 |
70 |
460 |
320 |
|
50WQ20-40-7.5 |
650 |
270 |
70 |
460 |
320 |
