主要性能參數(shù)MAIN PERFORMANCE PARAMETERS
|
型號
Model
|
排出口徑
Drain-out aperture
mm
|
流量
Flow
m³/h
|
揚程
Head
m
|
轉(zhuǎn)速
Speed
r/min
|
功率
Power
kW
|
效率
Efficiency
%
|
重量
Weight
Kg
|
|
50WQ20-7-0.75
|
φ50
|
20
|
7
|
2900
|
O.75
|
54
|
50
|
|
50WQ1O-10-0.75
|
φ50
|
10
|
10
|
2900
|
O.75
|
56
|
50
|
|
50WQ25-10-1.5
|
φ50
|
25
|
10
|
2900
|
1.5
|
56
|
60
|
|
50WQ20-15-1.5
|
φ50
|
20
|
15
|
2900
|
1.5
|
55
|
55
|
|
50WQ27-15-2.2
|
φ50
|
27
|
15
|
2900
|
2.2
|
56
|
60
|
|
50WQ15-25-2.2
|
φ50
|
15
|
25
|
2900
|
2.2
|
56
|
60
|
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁
。
| Note：the parameters of model
JYWQ autostirring submersible sewage pump are identical
to those ofmodel WQ submersible sewage pump(see the
table above) ，see the next page for the out-form
dimensions．
|

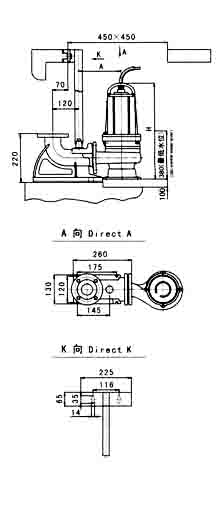

WQ型外形安裝尺寸圖OUT-FORM AND INSTALLATION DIMENSIONS OF
MODEL WQ
自動耦合式安裝
Auto-coupling
installation
|

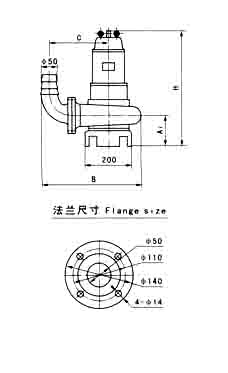

軟管移動式安裝
Hose movabIe installatiOn
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
型號Model
|
H
|
A
|
AI
|
B
|
C
|
|
50WQ20-7-0.75
|
450
|
190
|
100
|
360
|
210
|
|
50WQ10-10-0.75
|
450
|
190
|
100
|
360
|
210
|
|
50WQ25-10-1.5
|
640
|
190
|
160
|
400
|
280
|
|
50WQ20-15-1.5
|
640
|
190
|
160
|
400
|
280
|
|
50WQ27-15-2.2
|
640
|
190
|
160
|
400
|
280
|
|
50WQ15-25-2.2
|
640
|
190
|
160
|
400
|
280
|
